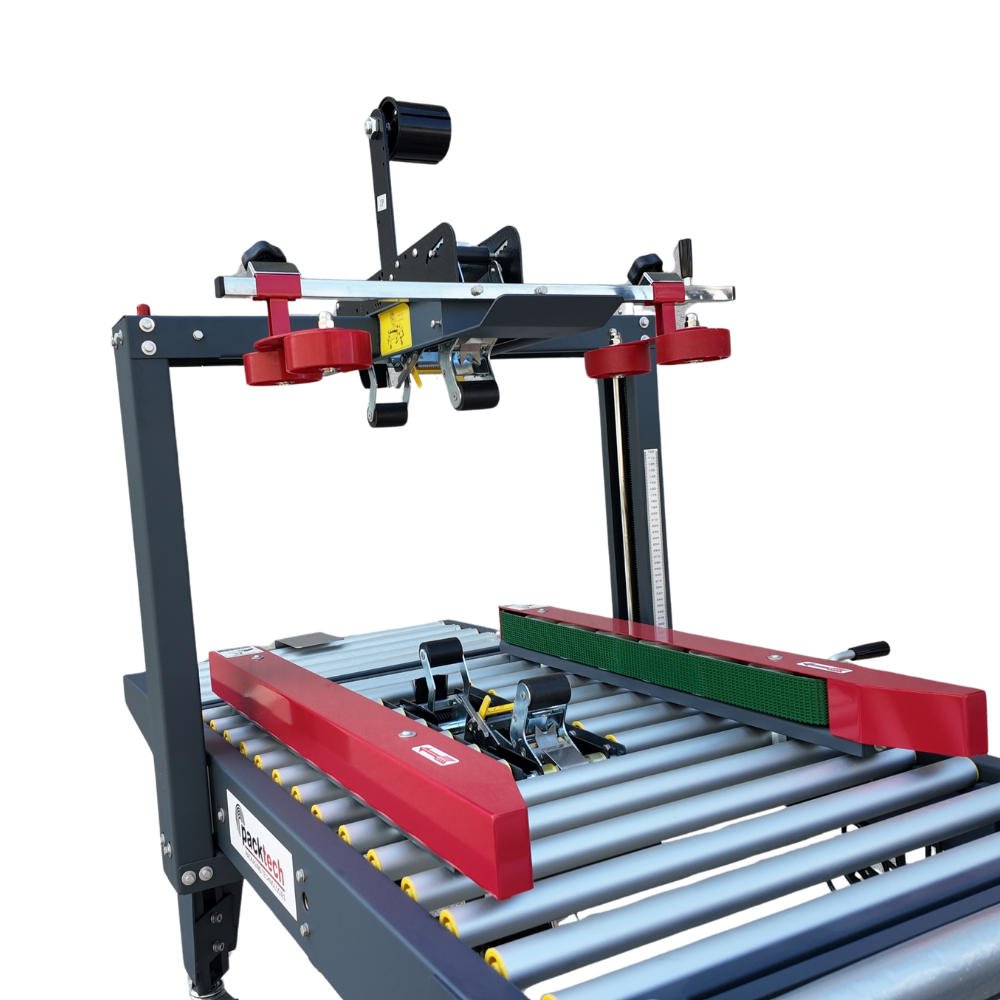

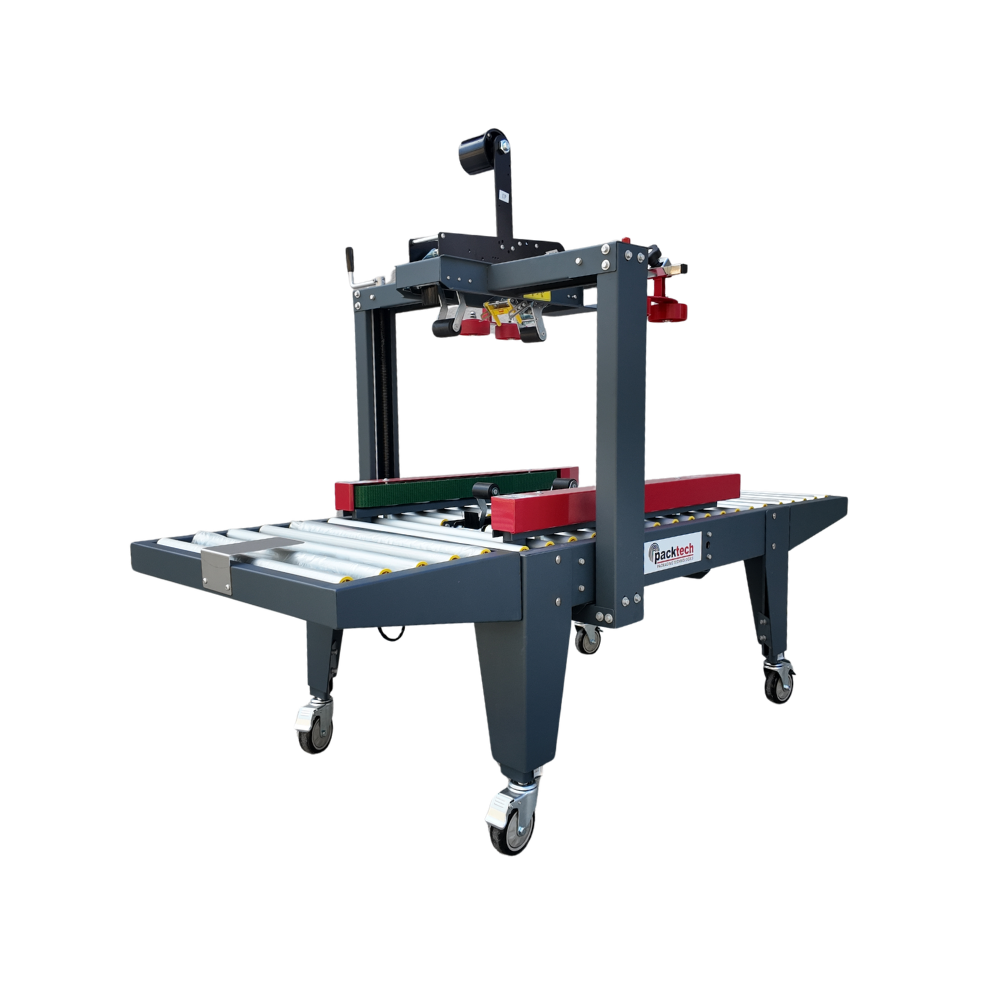

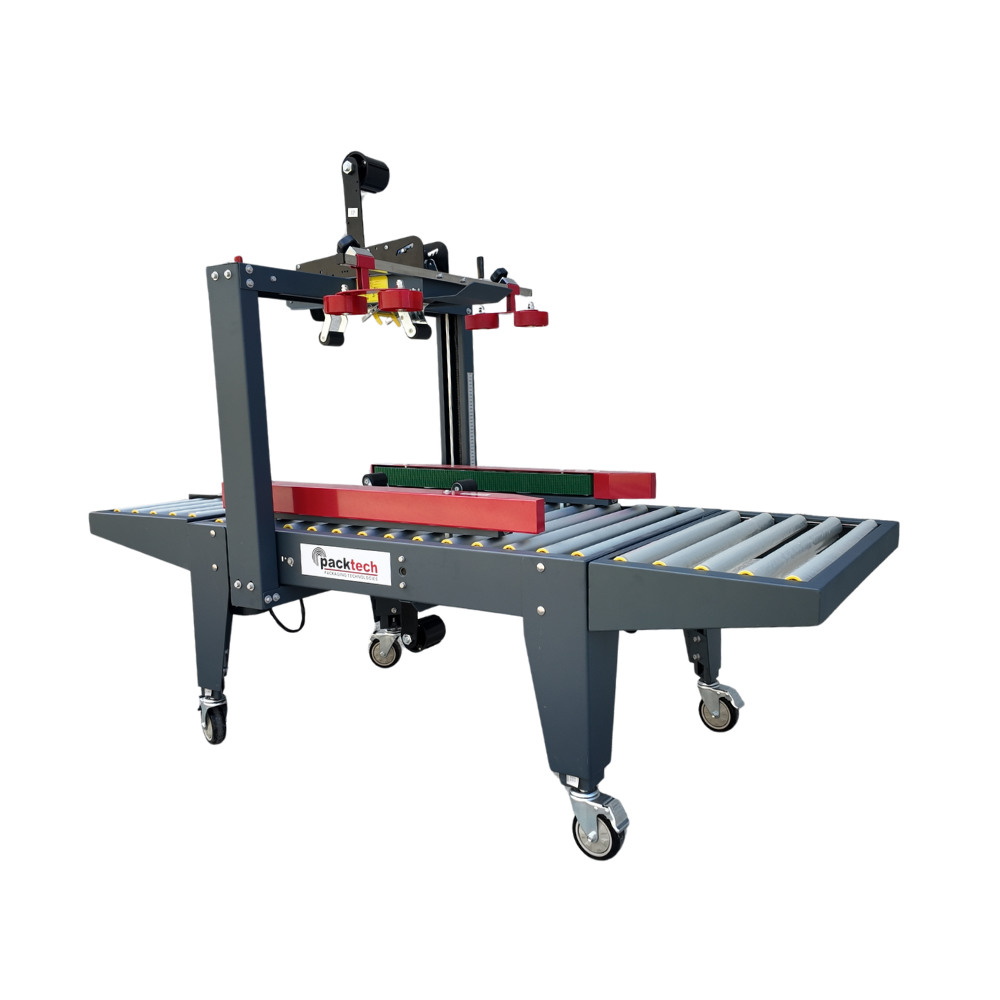

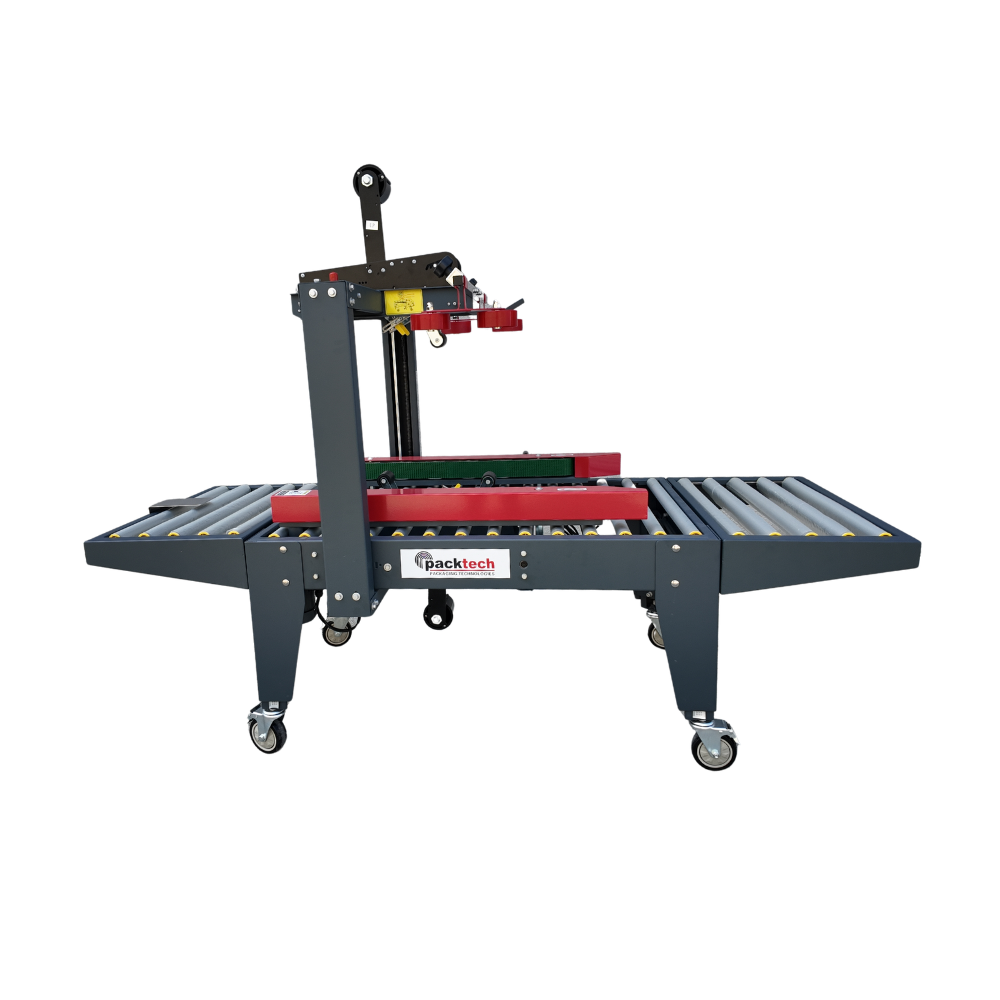

Packtech Semi Automatic Carton Box Sealer Machine
PT-XT-553RL
PI REQUEST FORMAnswered in 1 business day
| Brand: | PACKTECH |
| Product Code: | PT-XT-553RL |
Technical Details
- Options : Stainless Steel Body (SUS304)
- Features : High-Speed Sealing Unit
- Adjustable Leg Height : 60–75 cm
- Sealing Type : Top & Bottom Sealing

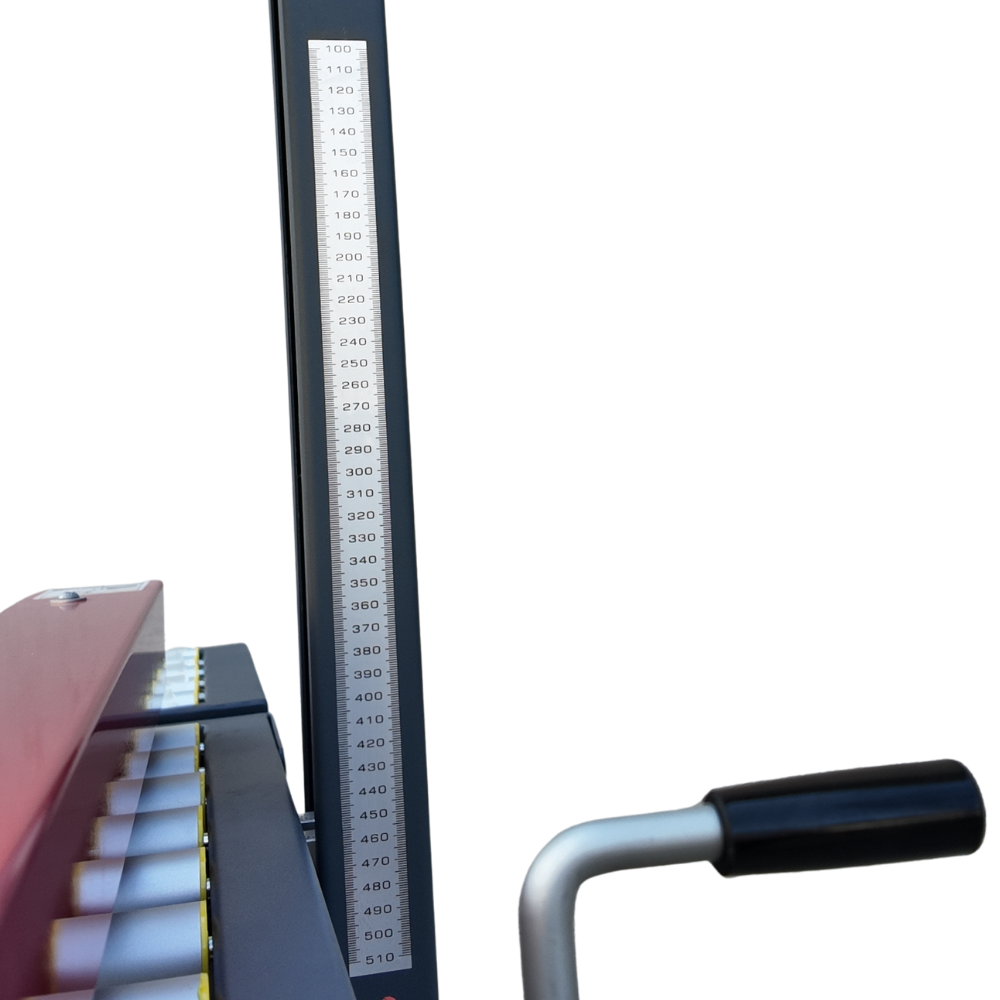

- Carton Size Adjustment : Manual Adjustment
- Accessories : Stainless Steel Infeed & Outfeed Conveyor / Spare Parts Kit / Wheels

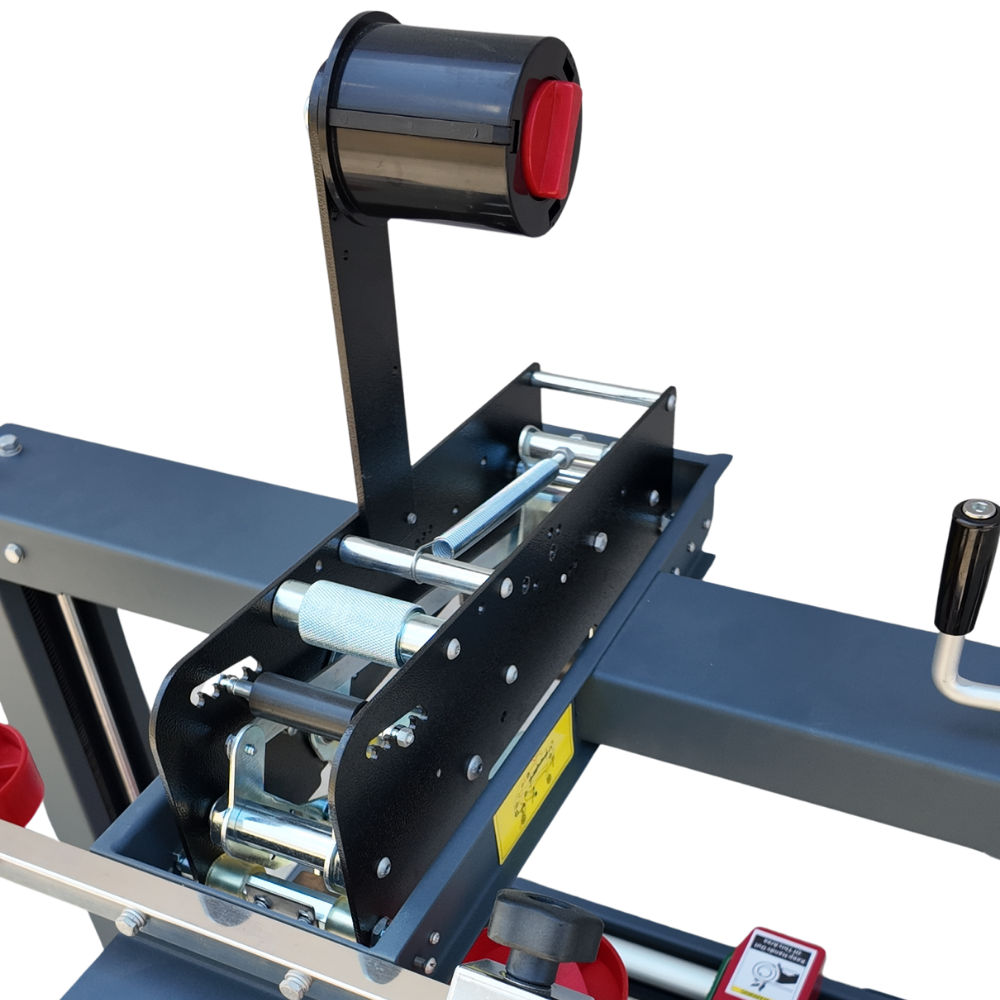

- Compatible Tape Width : 36 / 48 / 50 / 60 mm
- Gross Weight : 165 kg
- Net Weight : 125 kg

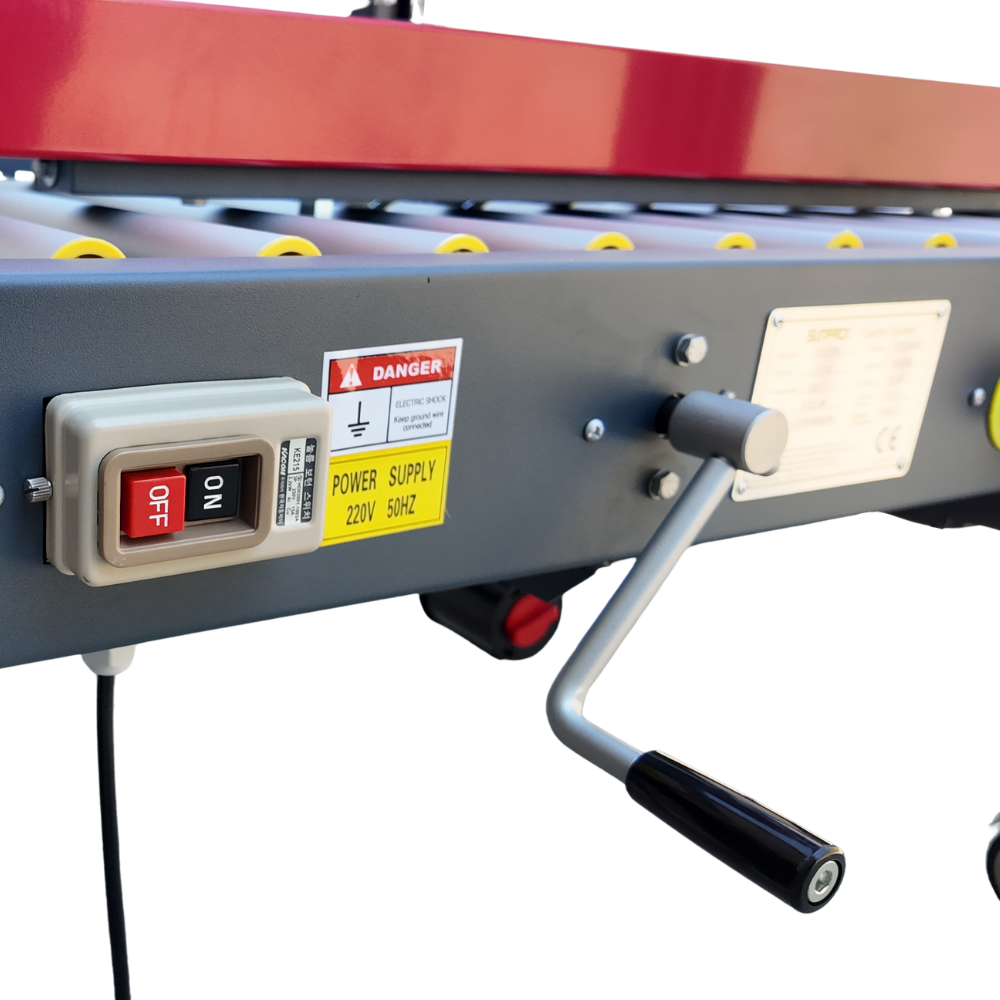

- Power Supply : 220V / 50Hz / 1 Phase

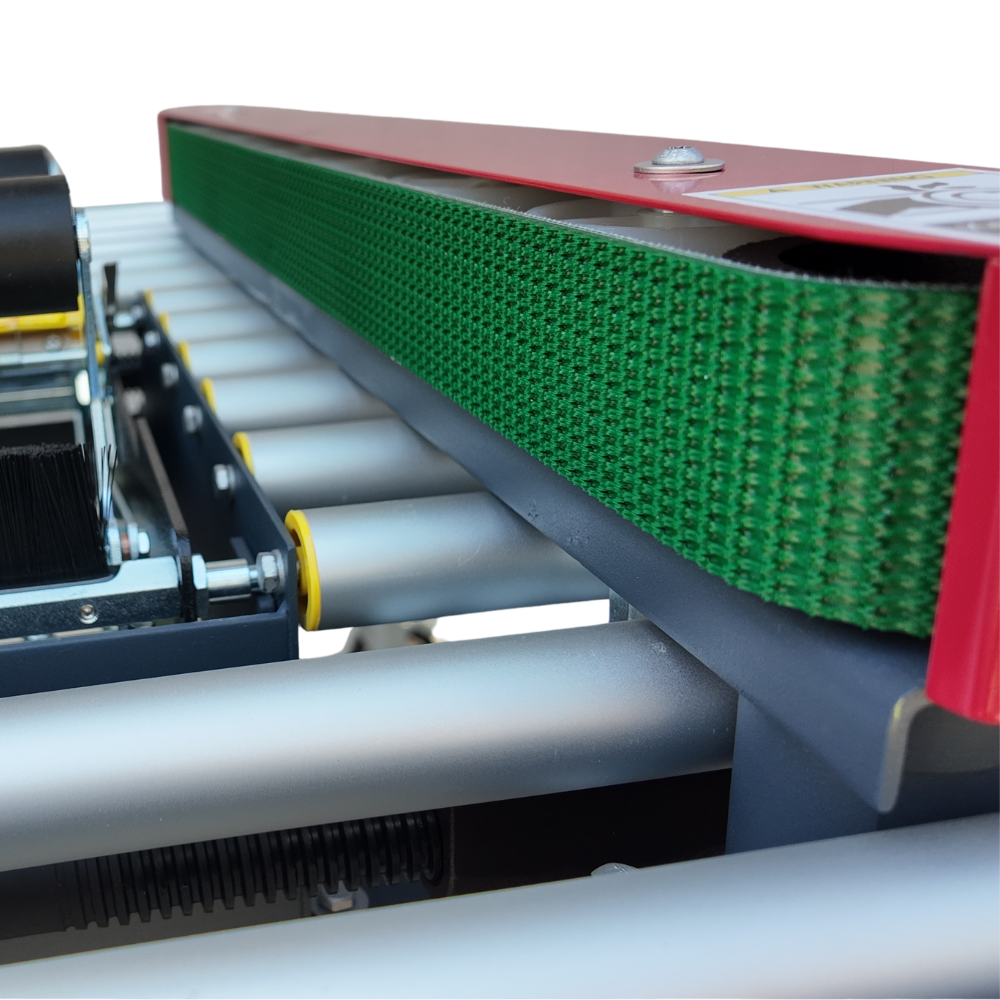

- Belt Dimensions : 50 × 1510 mm
- Number of Belts :
- Machine Dimensions : Upon Request
- Maximum Tape Roll Length : 1,000 m
- Compatible Tape Core Size : 2" (50 mm) and 3" (76 mm)
- Motor : 2 × 120 W
- Duty Cycle : 24/7 Continuous Operation
- Maximum Carton Load Capacity : 35 kg
- Sealing Speed : Up to 15 Cartons/Minute
- Carton Height Range : 150–600 mm
- Carton Width Range : 120–500 mm
- Carton Length Range : Minimum 120 mm / Maximum: To Be Confirmed
- Operating Type : Semi-Automatic, Side Belt Drive
