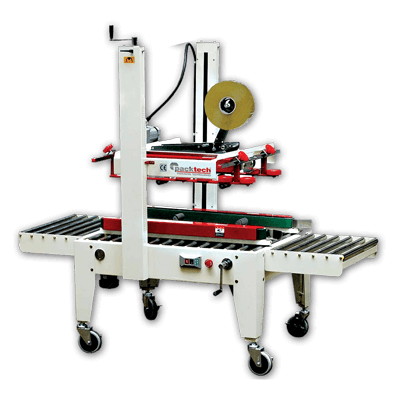

Packtech Semi Automatic Carton Box Sealer Machine
PT-FXJ-6050B
3 MotorsPI REQUEST FORMAnswered in 1 business day
| Brand: | PACKTECH |
| Product Code: | PT-FXJ-6050B |
Technical Details
- Options : Stainless Steel Body (SUS304)
- Features : High-Speed Sealing Unit
- Adjustable Leg Height : 60–75 cm
- Sealing Type : Top & Bottom Sealing
- Carton Size Adjustment : Manual Adjustment
- Accessories : Stainless Steel Infeed & Outfeed Conveyor / Spare Parts Kit / Wheels
- Compatible Tape Width : 36 / 48 / 50 / 60 mm
- Gross Weight : 170 kg
- Net Weight : 140 kg
- Power Supply : 220 V / 50 Hz / 1 Phase
- Belt Dimensions : 2 × 50 × 1540 mm / 2 × 50 × 1365 mm
- Number of Belts :
- Machine Dimensions (L × W × H) : Upon Request
- Maximum Tape Roll Length : 1,000 m
- Compatible Tape Core Size : 2" (50 mm)
- Motor : 3 × 100 W
- Duty Cycle : 24/7 Continuous Operation
- Maximum Carton Load Capacity : 50 kg
- Sealing Speed : Up to 15 Cartons/Minute
- Carton Height Range : 150–600 mm
- Carton Width Range : 150–500 mm
- Carton Length Range : Minimum 120 mm / Maximum: To Be Confirmed
- Operating Type : Semi-Automatic, Side Belt & Upper Belt Drive
