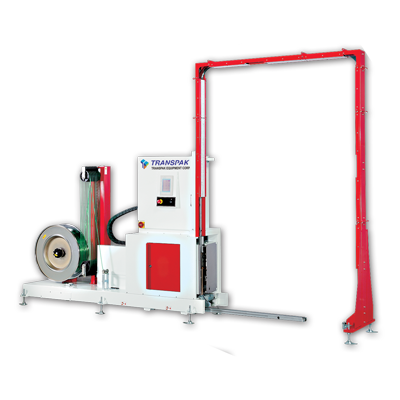

Transpak Pollux Full Automatic Vertical Pallet Strapping Machine
TP-733VLM
PI REQUEST FORMAnswered in 1 business day
| Brand: | TRANSPAK |
| Product Code: | TP-733VLM |
Technical Details
- Çember Tipi : PP-PET
- Çember Genişliği : 9 mm - 12 mm - 16 mm - 19 mm
- Çember Kalınlığı : 0,6 - 1,30 mm
- Strap Tension Force : 110- 300 kg
- Kullanım Şekli : Hat içi Konveyöre İlave | Manuel
- Elektronik Ekipman : Siemens PLC ve HMI
- Kontrol Paneli: : Dokunmatik Ekran İle Kontrol
- Gerginlik Kontrolü : Electronic
- Sealing Type : Sürtünme/Vibrasyon
- Motor Type : Ac Motor
- Operating Speed : 2,5 Saniye/Çember
- Çerçeve Ölçüsü : 2450 mm (Y) x 1400 mm (G)
- Çember Kasnağı : 406 mm
- Çerçeve Ölçüsü : Modüler Olarak Değiştirilebilir
- Operating Speed : 72 Palete Kadar ( Çift Çember ile)
- Konveyör Sistemi : Dahil Değil
- Net Weight : 437 kg
- Gross Weight : 492 kg
- Power Supply : 380V|50 Hz| 3Ph
- Country of Origin : Taiwan
- Diğer Özellikler : Forklift ve Trtanspalet Girşine Uygun Hareketli Çember Kanalı | Siemens PLC Kontrol Ve HMI Sistemi ile Dijital ve Kolay Kullanım
