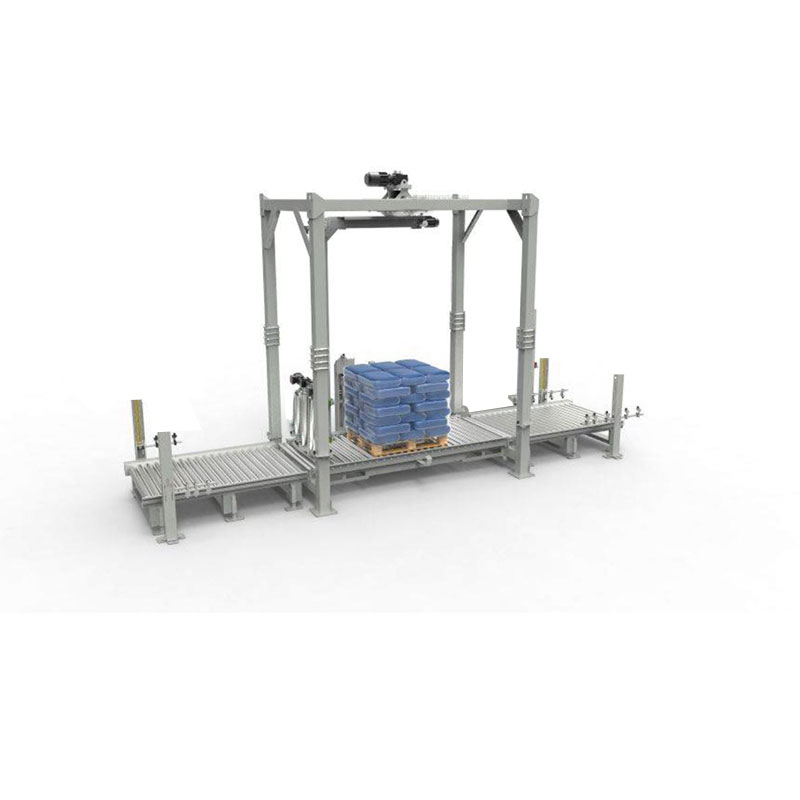

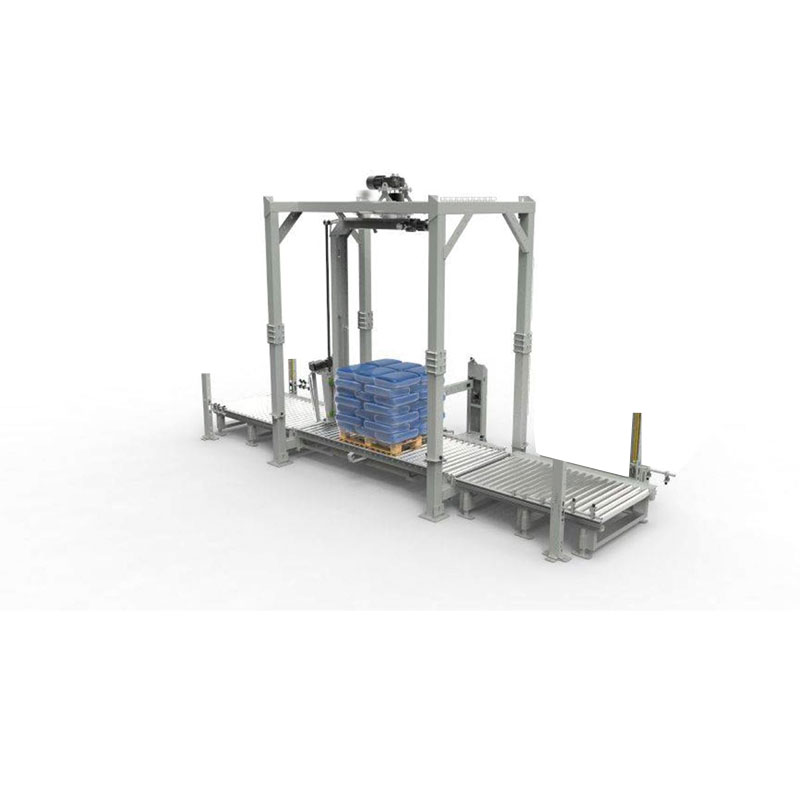

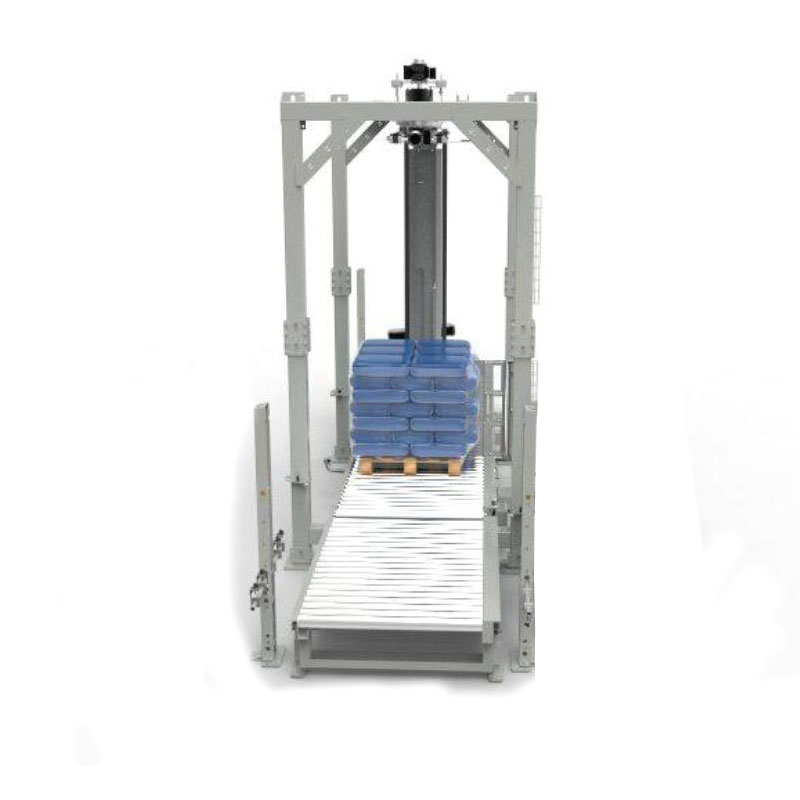

Packtech Automatic Rotating Arm Stretch Wrapping Machines
PT MASTER 260
Full AutomaticPI REQUEST FORMAnswered in 1 business day
| Brand: | PACKTECH |
| Product Code: | PT MASTER 260 |
Technical Details
- Control System : 3 Drives and Stretch Film & Conveyor Speed Controllers (Schneider Brand)
- Automation : Available
- Stretch : Automatic Stretch Cutting, Sticking, and Holding
- Pre-Stretch Ratio : 300% Motorized Pre-Stretch
- Rotation Motor : 0.30 kw
- Pre-Stretch Motor : 0,40kw
- Conveyor Motor : 0.50 kw
- Display : Touchscreen Control
- Capacity : 30 Palet / Saat
- Minimum Ürün Ölçüsü : (U) 800 mm - (G) 600 mm - (Y) 500 mm
- Minimum Product Dimensions : (U) 1200 mm - (G) 1200 mm - (Y) 2500 mm
- Maximum Product Dimensions : 7-11 tur/dk. Ayarlanabilir Hız Kontrol
- Streç Yukarı Aşağı Sarım Hızı : 2,6 - 6,0 mt./dk Ayarlanabilir Hız Kontrol
- Rotation Speed : 7–11 rpm, Adjustable Speed Control
- Usage Type : Suitable for Automatic Operation
- Pallet Height Detection : Height detection via photocell
- Minimum Pallet Weight : 40 kg
- Maximum Pallet Weight : Limitsiz
- Film Carriage Up/Down Speed : 1.4 – 6.0 m/min, adjustable speed control
- Max. Stretch Film Roll Outer Diameter : 200 mm
- Stretch Film Roll Inner Diameter : 75 mm
- Maximum Stretch Film Weight : 14 kg
- Usable Stretch Film Thickness : 17 - 25 Mikron
- Safety : Anti-collision safety barrier, film unit anti-jam switch
- Power Supply : 220V | 50HZ | 1PH
