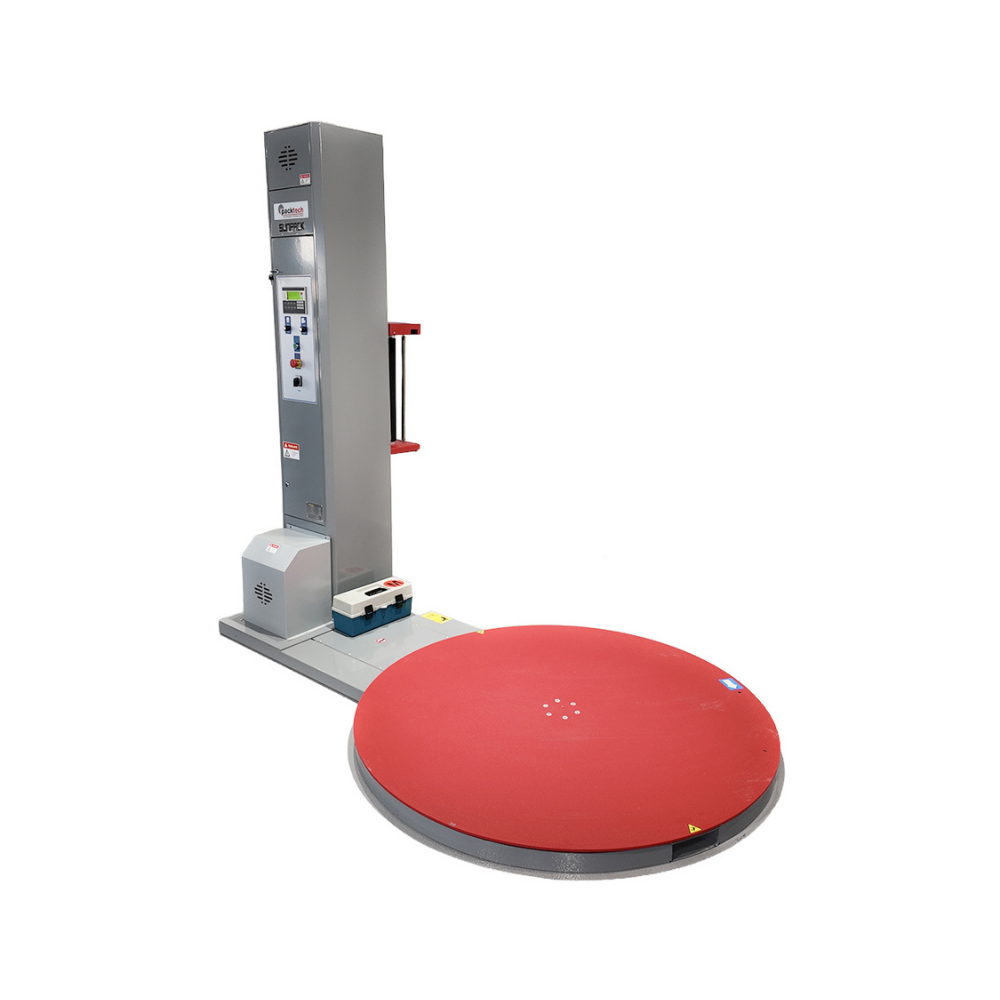

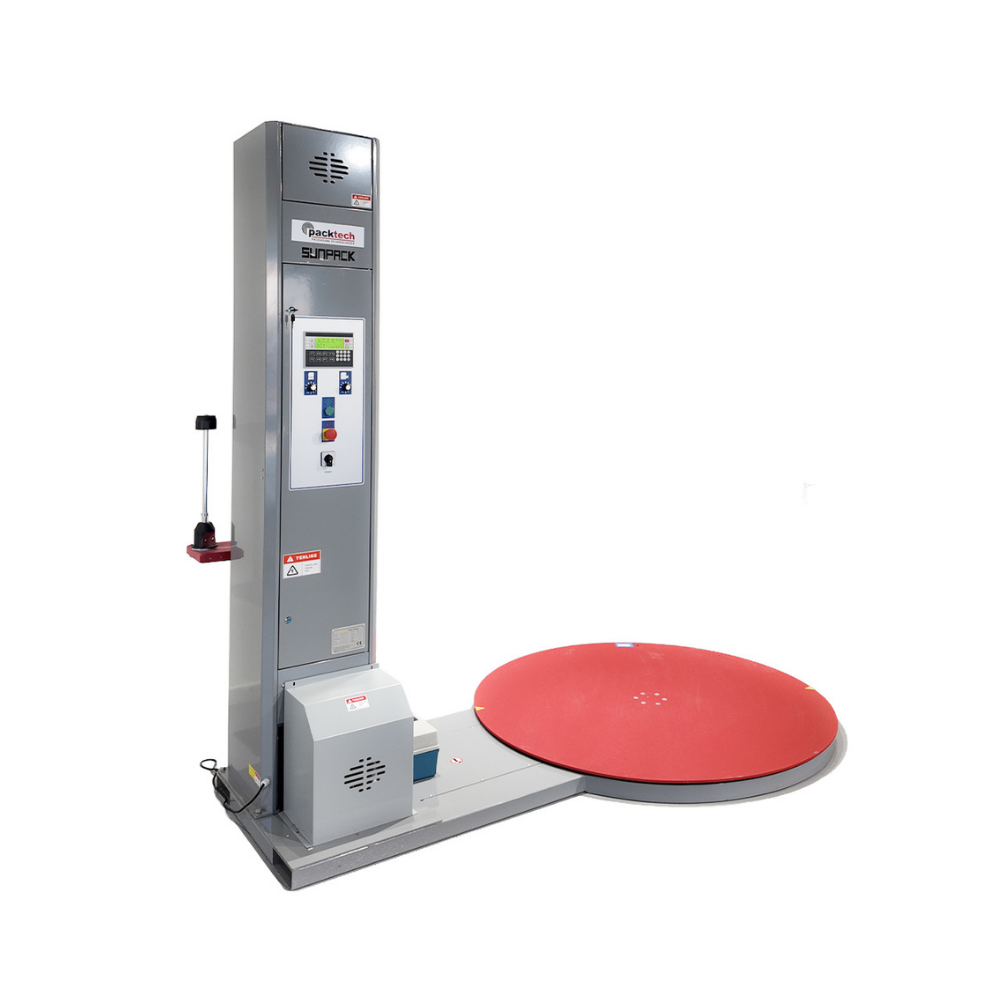

Packtech Pallet Wrapping Machine
PT-XT-4505-2

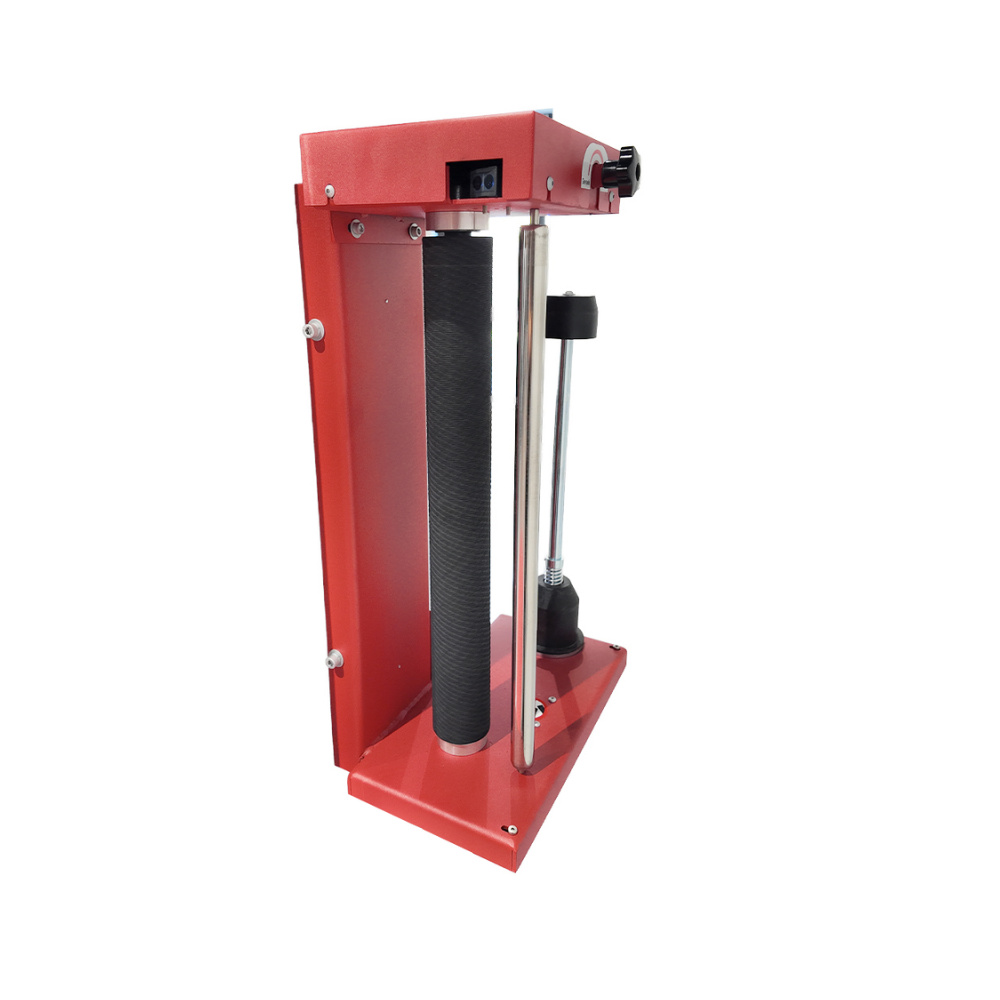

Mechanical Pre-TensionerPI REQUEST FORMAnswered in 1 business day
| Brand: | PACKTECH |
| Product Code: | PT-XT-4505-2 |
Technical Details
- Kontrol Sistemi : 2 Adet Sürücü İle Tabla Ve Asansör Hız Kontrolleri ( Schneider Marka )

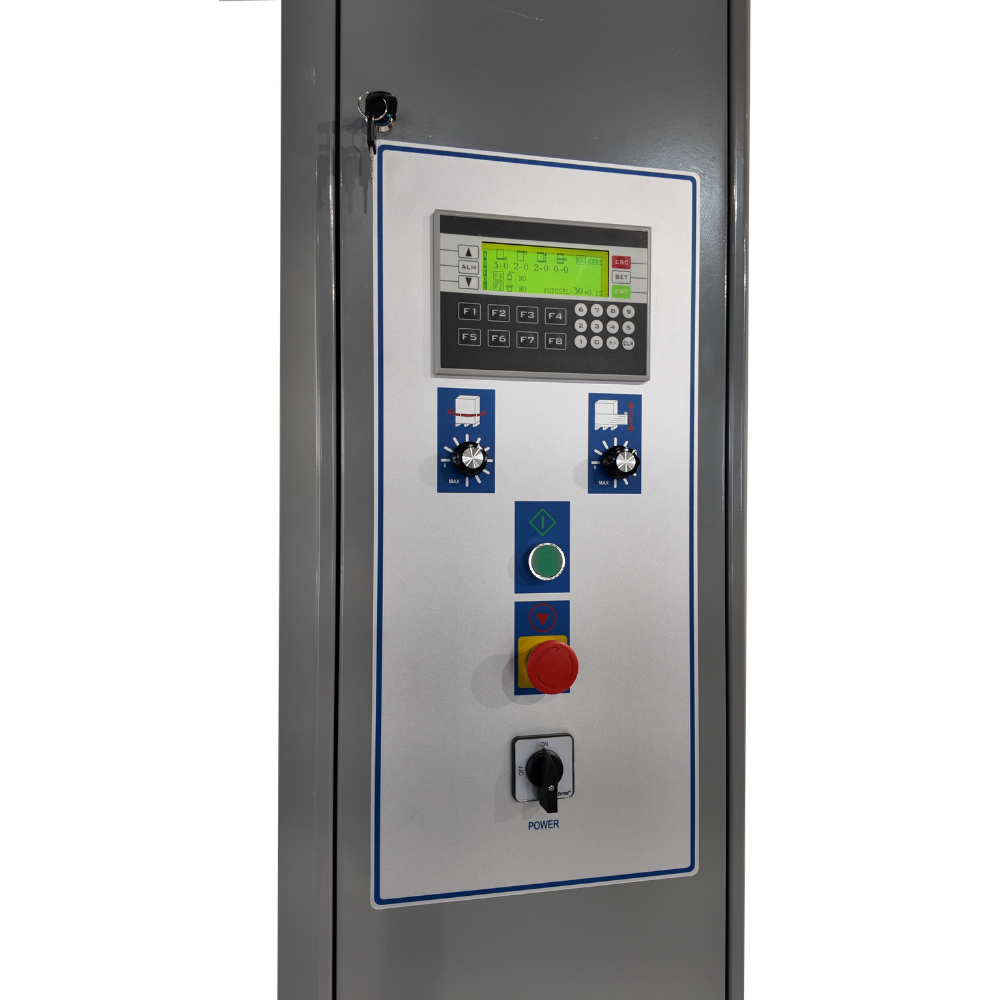

- Ekran : PLC Ekran kontrolü
- Döner Tabla Hızı : 1 - 10 Tur / Dakika
- Döner Tabla Motoru : 0.75 kw
- Lift Motor : 0.18 kw
- Pre-Stretch Motor : Bulunmaz
- Pre-Stretch Ratio : 2.5
- Turntable Diameter : 1500 mm | 1650 mm | 1800 mm
- Turntable Height : 80 mm
- Maximum Pallet Height : 2100-2600
- Minimum Pallet Height : 500 mm
- Maximum Pallet Weight : 2000 kg
- Program Hafıza Kayıt : 5 farklı sarım programı kaydedilebilir
- Maximum Stretch Film Outer Diameter : 200 mm
- Stretch Film Core Diameter : 75 mm
- Film Up/Down Wrapping Speed : 2,5 - 5,5 m/min speed
- Maximum Stretch Film Weight : 14 kg
- Usable Stretch Film Thickness : 17 - 25 Micron
- Pallet Height Detection : Height Detection by Photocell
- Sarım Özelliği : Bottom & Top Wrapping or Only Bottom/Top Wrapping
- Kullanım Tipi : Manuel Kullanım Veya Otomatik Kullanıma Uygun
- Palet Yükleme : Transpalet Veya Forklift İle Yükleme Yapılabilir, Zemine Gömme Yapılabilir
- Güç Kaynağı : 220V | 50HZ | 1PH
