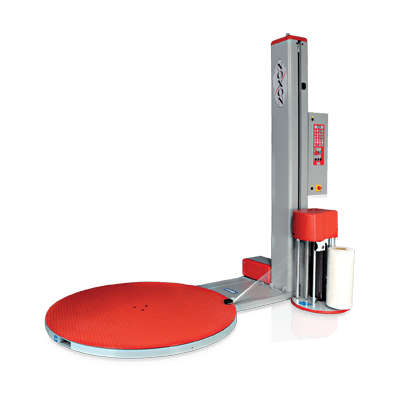

Noxon Freesby Automatic Wrapping Machine
NXN FRB X4 312
PI REQUEST FORMAnswered in 1 business day
| Brand: | NOXON |
| Product Code: | NXN FRB X4 312 |
Technical Details

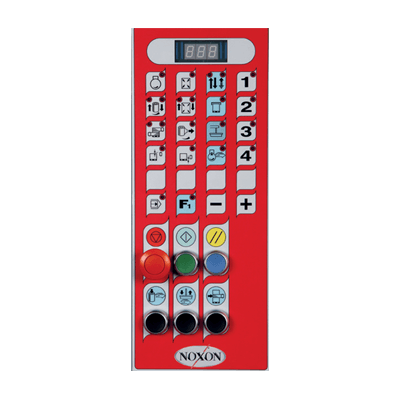

- Control Board : Programlanabilir Kontrol Paneli
- Rotary table Speed : 4 - 10 Tur / Dakika
- Tensioner Ratio : %300 | Motorlu
- Rotary Table Diameter : 1500 mm | 1650 mm
- Rotary Table Height : 80 mm
- Maximum Pallet Height : 2200 mm
- Minimum Pallet Height : 500 mm
- Maximum Pallet Weight : 2000 kg
- Stretch Spool Speed : 1.4 - 4 Metre / Dakika
- Max. Strech Pulley External Diameter : 300 mm
- Stretch Spool Inner Diameter : 76 mm
- Stretch Spool Height : 500 mm
- Suitable Stretch Thickness : 17 - 35 Mikron
- Maximum Stretch Weight : 20 kg
- Tensioner Motor : 0.18 kw
- Power Requirement : 220V | 50 Hz | 1 Ph
- Features : Adjustable Rotary Table SpeedAdjustable Head SpeedAdjustable Up and Down Movement SpeedAdjustable Number of Bottom and Top WindingsOnly Bottom or Top Winding FeatureManual Usage FeatureManual Up and Down Descending and Ascent SpeedStop Where It StartedSlow Start and Slow EndPhotocell DetectionReinforced Front Tensioning SystemProgram Memory Recording FeatureFolklift Entrance | Front and BackScreen Lock Button
- Options :
Transpallet Entry and Ramp

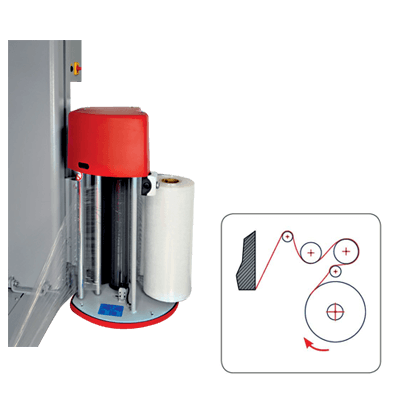

4-Way Pre-Tensioning System
Intermediate Loaded (Layered) Stretch Feature - Height Options : 2400 mm | 2800 mm | 3100 mm
- Origin : İtaly
