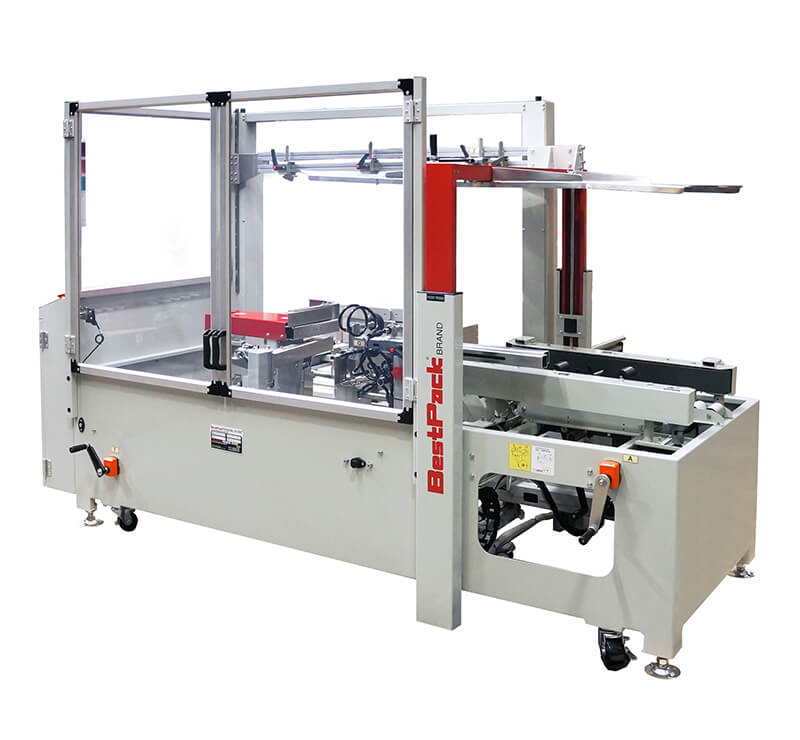

Bestpack Automatic Carton Box Making Machine
BP-ELVS-11
PI REQUEST FORMAnswered in 1 business day
| Brand: | BESTPACK |
| Product Code: | BP-ELVS-11 |
Technical Details
- Operating Type : Carton Erecting / Bottom Sealing
- Carton Feeding Type : Vertical
- Min–Max Length : 190–450 mm
- Min–Max Width : 180–350 mm
- Min–Max Height : 150–450 mm
- Operating Speed : 13 Cartons/Minute
- Performance : Suitable for 24/7 Continuous Operation
- Carton Magazine Capacity : 100 Cartons
- Motor : 2 × 140 W
- Tape Core Size : 2" (50 mm)
- Maximum Tape Roll Length : 1,000 m
- Compatible Tape Width : 48 / 50 / 60 / 75 mm
- Air Requirement : 100 PSI / 10+ CFM
- Display : 20" Touch Screen
- Display Type : Siemens
- Relays & Contactors : Schneider

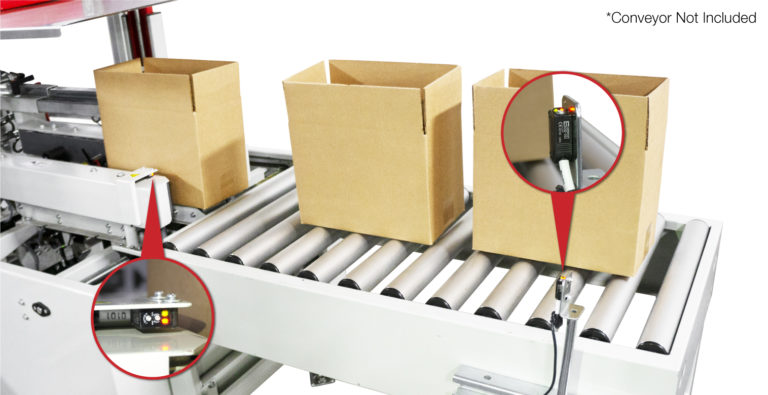

- Photoelectric Sensor : Omron
- PLC : Siemens
- Pneumatic System : P+F (Germany) / Airtech Dual Motor
- Carton Size Adjustment : Lead Screw Adjustment
- Carton Opening System : Vacuum Nozzle System
- Carton Holding System : Pneumatic System
- Carton Folding System : Pneumatic System
- Carton Pushing System : Pneumatic System
- Automation System : Automation Compatible
- Number of Belts :
- Belt Dimensions : 50 × 1540 mm
- Safety : Safety Guard
- Warning : Low Carton Alarm
- Machine Weight : 450 kg
- Machine Dimensions (L × W × H) : 2350 × 2100 × 1650 mm
- Power Supply : 230 V / 50–60 Hz / 1 Phase
- Accessories : Spare Parts Kit / Wheels
- Sealing Type : Bottom Sealing
- Adjustable Leg Height : 60–75 cm
